* WY STANDARD SPECIFICATIONS
No TYPE CAPA-
CITY
(kg) 		SPE-
ED
(M/min) 		ENTRANCE CAR INTERNAL HOISTWAY INTERNAL TRA VEL
(m)		 HOOK
(kg) 		PIT (kg)
REACTION
WxH (m/m) A x B (m/m) X x Y (m/m) 실린더
R1		 버퍼
R2
1 WY-75-2U-15 750 15 1400 x 2100 1400 x 2000 2300 x 2550 15 2000 6250 7500
2 WY-75-2U-30 30
3 WY-100-2U-15 1000 15 1800 x 2100 1800 x 2000 2700 x 2550 15 2000 6900 8900
4 WY-100-2U-30 30
5 WY-150-2U-15 1500 15 1800 x 2100 1800 x 2400 2900 x 2950 15 3000 8300 12300
6 WY-150-2U-30 30
7 WY-200-2U-15 2000 15 2200 x 2100 2200 x 2600 3000 x 3250 10 3000 9500 14100
8 WY-200-2U-30 30
9 WY-250-2U-15 2500 15 2500 x 2400 2500 x 3000 3600 x 3700 10 4500 11000 17700
10 WY-250-2U-30 20
11 WY-300-2U-15 3000 15 2500 x 2400 2500 x 3400 3750 x 4100 10 4500 12500 18900
12 WY-300-2U-30 20

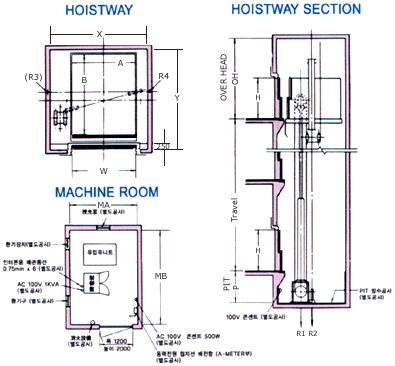

No TYPE MACHINE ROOM INTERNAL
MA x MB (m/m)		 PIT
P
(m/m) 		TOP
T
(m/m) 		OVER
HEAD
OH
(m/m) 		HOISTWAY
REACTION 		MOTOR
(kw) 		전선
(KVA)
R3 R4
1 WY-75-2U-15 2000 x 3000 1250 1250 4450 1000 1500 11 20
2 WY-75-2U-30 18.5 30
3 WY-100-2U-15 2000 x 3000 1250 1250 4450 1100 1850 11 20
4 WY-100-2U-30 22 50
5 WY-150-2U-15 2000 x 3000 1250 1250 4450 1400 2350 15 28
6 WY-150-2U-30 30 75
7 WY-200-2U-15 2500 x 3000 1250 1250 4450 (500) (4100) 18.5 40
8 WY-200-2U-30 37 75
9 WY-250-2U-15 2500 x 3000 1250 1650 4850 (500) (5000) 22 50
10 WY-250-2U-30 30 75
11 WY-300-2U-15 2500 x 3500 1250 1650 4850 (500) (5800) 25 50
12 WY-300-2U-30 30 75
